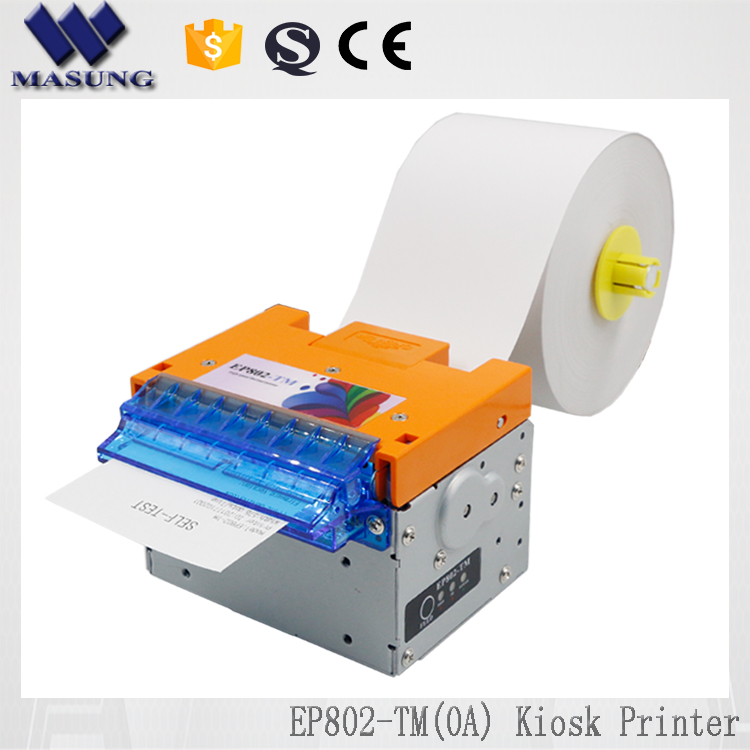

    Dot Line Usb Kiosk Thermal Printer Temperature Sensor 24v For Vending Machine

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : W80
    Certification : CE/ROHS
    Price : 170-180USD/PCS
    Supply Ability : 2000 set per month
    • Product Details
    • Company Profile

    Dot Line Usb Kiosk Thermal Printer Temperature Sensor 24v For Vending Machine

    2020 New Style 80mm USB Thermal Label Printer Brand Kiosk Thermal Printer For Vending machine

    Features:
    Brand name thermal head & auto cutter
    Ultra Highly printing speed Max 250 mm/s Unique “anti-drag” ticket system
    Smart paper bezel with LEDs
    Sturdy adjustable paper roll bracket (horizontal & vertical mounting)
    Wide range paper thickness: from 0.06 ~ 0.2 mm

    USB support USB2.0 high-speed and full-speed .Standard USB ports are implemented using the standard series B socket defined in the USB specification.

    Specification:

    ModelW80
    Control boardEP802_3


    print

    Printing methodDot line thermal printing

    Total dots per
    line

    640 dots
    Printing width80mm(max)
    Printing speed250mm/s(max)
    Printing patternInverse, underline, italic, bold, etc.
    CharacterASCII9*17 dots,12*24 dots
    Chinese24*24 dots
    DetectionThermal head temperaturetemperature sensor
    Platen positionMechanical switch
    Paper endMechanical sensor
    Paper out
    Paper near endReflective infrared light sensor
    Paper gap
    Black mark
    Cutter
    Paper retract
    PowerWorking voltage24V±10%
    Power standby≤40mA
    PaperPaper width60/80/82.5mm
    Paper thickness60~80μm
    Paper loadAuto loading(horizontal 180°)
    Paper cutterPartial/full cut
    environmentOperation temperature-10~60°C(no condensation)
    Operation humidity20~80%RH(40℃/85%RH)
    Storage temperature-20~70°C(no condensation)
    Storage humidity10~90%RH(50℃/90%RH)
    Service lifeCutter service life60μm100,0000
    200μm30,0000
    Abrasion resistance100KM
    DimensionWith 150mm paper roll, paper holder 45° upward119.30mm*89mm*86.13mm(W*D*H)
    WeightAbout 1.0kg(without paper roll)
    Communication interfaceSerial & USB


    Application:
    Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer and more
