Barcode Scanner Module Mini Embedded QR code Barcode Scanner Module Compatibel with Multiple Interfaces

Product Description

MS-2104

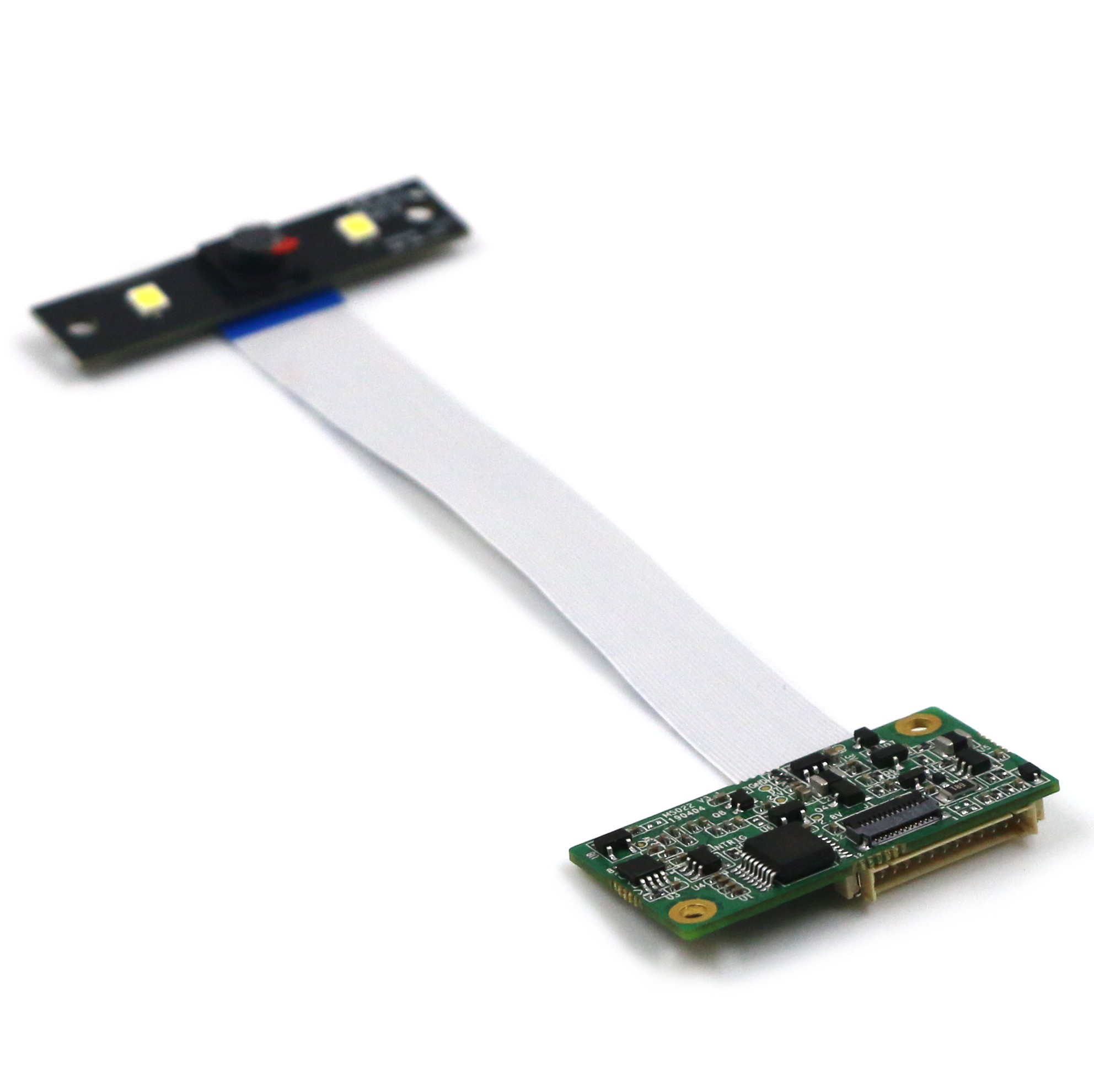

Mini Embedded QR code Barcode Scanner Module Compatibel with 1D&2D barcodes and multiple interfaces

Features:

* Compatibel with 1D&2D barcodes,paper and electronic screens.
* Split type is more suitable for integration,the total thickness is less than 1CM.
* Support RS232/USB/USB virtual serial port/TTL/Wiegand and other interfaces.
* Wide-angle camera,360° full range of barcode capture.
* Support self-sensing object scanning,trigger scanning,command scanning,constant light
scanning,mobile screen scanning and other scanning methods.
* Wide temperature design,support -30°C to 70°C environment.

Date Collection Ability
Collection method	Image type,CMOS Sensor
Speed	1/60s
Field of View	Diagonal 84°, horizontal 72°, vertical 54
Symbology Decode Capability
identification accuracy	2D≥7.5mil,1D≥5mil
Reading Mode	Close to, close to reading, 0-30cm (according to different bar codes)
Roll/Pitch/Yaw	360°, ±55° , ±55°
1D	QR Code, Data Matrix, PDF417,hanxin code etc.
2D	UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc.
Print contrast	25% minimum reflective difference
LED
Fill in light	White
Physical Parameters
Dimensions	Lens plate: 43mmL*10mmW*3mmH ; Decoding board: 37mmL*19mmW*7mm
Weight	<20g
Interface
Socket interface	12PIN socket, 1.25mm Pitch, industrial socket 12pin 0.5mm Pitch FPC socket, upper and lower compatible power supply is 3-3.6v or 3.6-16v optional 12PIN cable socket: USB serial /USB KBW, RS232, RS485, 3.3v TTL/5V TTL 12PIN FPC socket: USB serial /USB KBW, 3.3v TTL/5V TTL
Scanning mode	Command mode/induction mode/trigger mode
Read success tips	LED fill light off
Data line selection	USB2 m straight line / 0.8m / 2.3m slingshot line, RS232 2m straight line, 12-foot FPC length arbitrary
External extension interface	Buzzer signal, decoded successful LED signal, trigger pin, reset pin
User Environment
Operating Temperature	-20°C to 65°C
Storage Temperature	-40°C to 80°C
Humidity	5% to 95% relative humidity,non-condensing
Ambient Light Immunity	Max 100.000 Lux.
Voltage	2Pin cable socket and 12Pin FPC socket input: 3-3.6v or 3.6-16v, optional
Working current	<220mA (3.3v input), <180mA (5V input), <100mA (10V input)
Sleep current	<5mA(3.3V input)
Certificate	CE,FC,ROHS

Product Usage

Application :

Handheld Pos machines,access control boxes,gates,self-contained devices with high integration etc.
