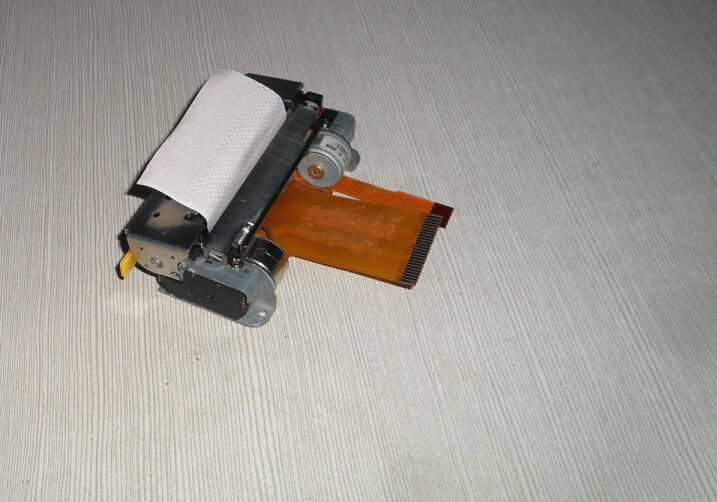

    DC24v Auto Cutter Thermal Printer Mechanism Compatible With FTP627MCL401

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS627MCL401
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 3,000 units/monthly
    • Product Details
    • Company Profile

    DC24v Auto Cutter Thermal Printer Mechanism Compatible With FTP627MCL401


    DC24v Auto Cutter Thermal Printer Mechanism Compatible With FTP627MCL401


    Quick Detail:


    ► Compatible with FTP627MCL401

    ► Integrated with auto cutter

    ► Stable reliability over 100 km

    ► High speed 150 mm/s

    ► DC24V input


    Description:


    MS627MCL401 is 58mm thermal printer mechansm integrated with auto cutter, which is total compatible with FTP627MCL401. its power supply is DC24V

    Specification:


    Mechanism

    MS627MCL401

    Printing method

    Thermal dot line printing

    Dot structure

    432 dots/line

    Dot pitch

    8 dots/mm

    Printing width

    54 mm

    Printing speed

    150 mm/s

    Paper width

    80 mm

    Paper thickness

    60-120 um

    Paper loading

    Easy paper loading

    Character size

    12*24, 48 characters/line

    24*24, 28 characters/line

    8*16, 72 characters/line

    16*16, 36 characters/line

    Power supply

    Printer head

    24V/0.5A (Average)

    Dynamo

    24V/0.9A (max)

    Logic voltage

    3.0V~5.5V, 0.1A (max)

    Auto cutterLogic voltage24V/1.1A (max)

    Dimensions (W*D*H)

    82.1*42.4*21.9 mm

    Weight

    98 g

    Electric life:

    Wear life

    More than 110,000,000 pulses

    More than 150 km

    Ambient condition

    Operating temperature

    -15 ℃~70℃

    Operating humidity

    10~85% RH

    Storage temperature

    -25℃~70℃

    Storage humidity

    10~90% RH

    Sensor

    TPH temperature

    thermistor

    Paper end detection

    Photo interrupter


    Application:


    POS terminal; payment kiosk; ticket vendor; parking system; coupon machine; gaming kiosk; gas station and more


    Competitive Advantage


    Product performance

    Prompt delivery

    Low cost

    Prompt devlivery

    Small order accepted
