    200 Mm / S Ticket Printer Mechanism , Thermal Receipt Printer With Dragging Paper Sensor

    200 mm/s Printing speed Ticket Printer Mechanism Dragging Paper Sensor Support


    Features:
    ROMO name printer mechanism
    A simple internal structure
    High speed printing speed, efficient and fast
    Various modes can be adjusted freely, convenient for your self-installation and flexible to meet the needs of multiple devices.
    Multiple optional interface designs, customized services.
    Multiple sensors, including the man block paper sensor, prevent external drag sensor, in your device paper is about to be used to death, also provide relevant sensor reminder.
    Support mainstream operating system Windows xp/Windows 7 / do /Android/Linux operating system

    Specification:


    mechanism:

    CAPD347

    Printing method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Paper thickness

    54~78 um

    Printing speed

    200 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Paper loading

    auto loading

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    4.75~5.25 V

    Motor

    21.6~26.4 V

    Dimension (L*W*H)

    119.45*96.13*80.60mm

    Weight

    Approx 1.92 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Interface

    RS-232 /USB/Parallel

    power supply

    DC 24V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    512KB Flash memory

    Buffer

    32 KB

    SRAM

    64KB (extra)

    Driver

    Parallel/USB driver

    System

    WindowsXP/Win7(32bits or 64 bits)/

    Win8/Android OS

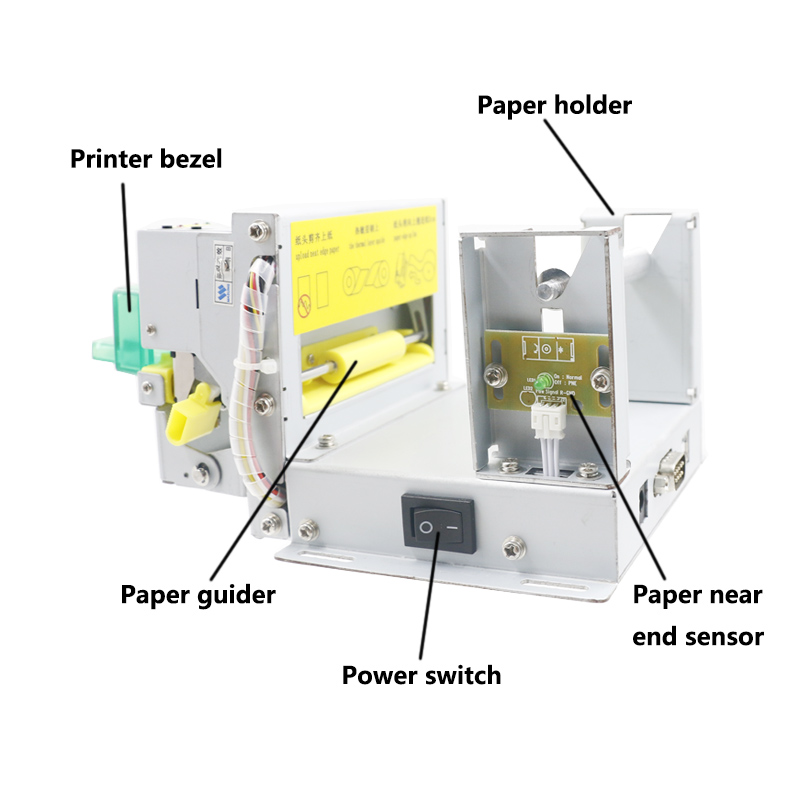

    Accessories:

    Sensors

    paper near end sensor;

    paper jam sensor;

    dragging paper sensor;

    Paper holding unit

    Paper guide mouth

    Interface connector

    Power supply unit

    Cable


    Application:


    Self-service terminal; ATM; parking lot machine; payment kiosk; coupon machine; ticket vendor;

    information kiosk; multimedia kiosk; queue management system and more.
