    Kiosk 2 Inch Thermal Printer Mechanism / Printer Working Mechanism For Portable Printing

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : LTPZ245N
    Certification : CE,ROHS
    Price : USD1~100/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,cash
    Supply Ability : 5000pieces/month
    Delivery Time : 3~7days
    • Product Details
    • Company Profile

    Kiosk 2 Inch Thermal Printer Mechanism / Printer Working Mechanism For Portable Printing


    Kiosk 2 Inch Thermal Printer Mechanism / Printer Working Mechanism For Portable Printing

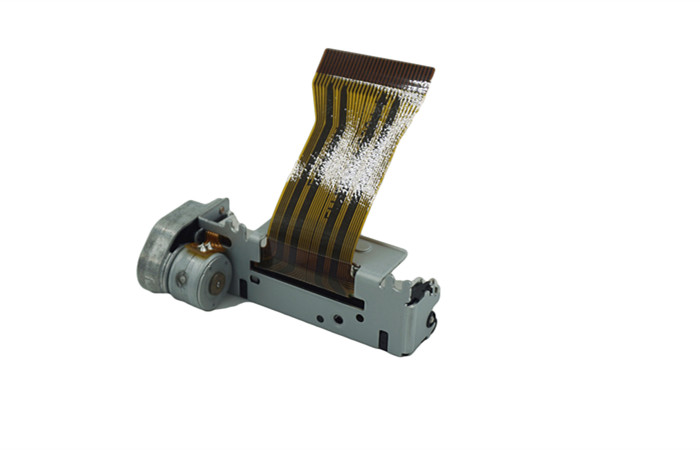

    The LTPZ245 is an ultra small, lightweight 2" thermal print mechanism, designed for portable printing applications, including point of sale payment terminals.

    • o EZ-OP clamshell paper replacement
    • o Low operating voltage for longer battery life
    • o Extreme operating temperature support (-20째C to 50째C)

    Product Specifications



    LTPZ245
    PrintingMethodThermal line dot printing
    Number of dots/line384
    Resolution (dots/mm)8
    Paper width (mm)58
    Printing width (mm)48
    Max speed (mm/sec)75
    Paper pathCurved
    DetectionHead temperatureBy thermistor
    Out of paper detectionBy photo interrupter
    Power supply (V)Operating voltage (Vdd)3.00 to 5.25
    Operating voltage (Vp)4.2 to 9.5
    Peak current (A)Head2.85 (8.5V/64 dots)
    Motor0.6
    Service lifePulse activation100 million
    Abrasion resistance (km)50*
    Operating temperature (°C)-20 to 50
    Dimensions (WxDxH mm)70.1 x 21.75 x 31.0**
    Mass (g)Approx. 47

    Application:

    Mobile device; cash register, POS terminal, handheld device, meters, medical/measuring instrument, pad printer
