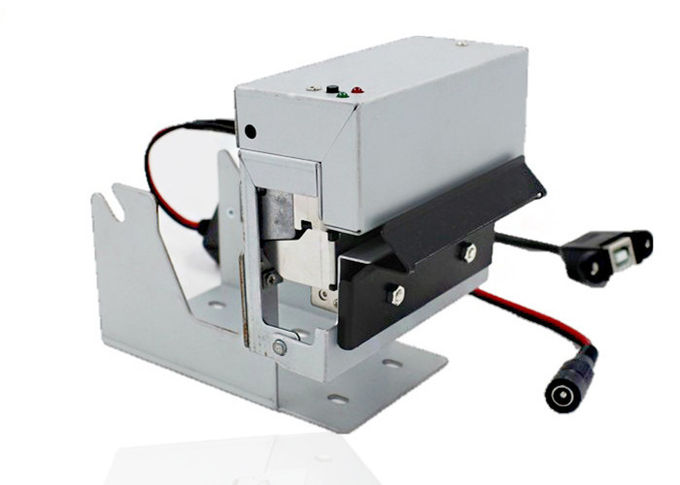

Label Thermal Printer Module Thermal Printer Inverse For Parking Management System/self-service terminal

Ask Lasest Price
Brand Name :	MASUNG
Model Number :	MS-D245
Certification :	CE RoHs
Price :	USD1~120/piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 unit /monthly
Delivery Time :	3-8

Add to Cart

Product Details
Company Profile

Label Thermal Printer Module Thermal Printer Inverse For Parking Management System/self-service terminal

Label Thermal Printer Module Thermal Printer Inverse For Parking Management System/self-service terminal

Features:

 Print barcode and QR code: EAN8,EAN13,CODE39,CODE128 and QR code.
 Optional communication interface: Serial, USB
 Driver support: WindowsXP/Windows7/Windows8/Windows10/Ubuntu/Android4.0 and above.
 Application fields: Self-service terminal, ATM, self-service receipts, and so on.

Specification

mechanism:			CAPD245
Printing method			Thermal dot line printing
Dots/line			384 dots/line
Dot pitch			8 dot/mm
Paper width			58 mm
Printing width			48 mm
Paper thickness			54~78 um
Printing speed			150 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Paper loading			Easy loading
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	2.6~3.6 V
		Motor	4.75 ~9.5 V
Dimension (LWH)			117.85103.593 mm
Weight			Approx 1.15 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Controlling board:
Interface	RS-232 /USB
power supply	DC 12V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	2 M NV Flash memory
Buffer	4 KB
SRAM	20 KB
Driver	USB driver
System	Windows/Android/Linux OS
Accessories:	paper near end sensor;
	Paper holding unit;
	Paper bezel (paper guide mouth)
	Interface connector
	Power supply unit
	Cable

Applications:

kiosks, bank call distributor, parking management system, payment machine, gas station, coupon machine, lottery device, ATM, self-service terminal, ID automation, attendance machine and more

Competitive Advantage:

Brand-name printer parts

Android system support

Customization offer

Prompt delivery

Low cost

Small order accepted
