    76mm Impact Dot Matrix Bluetooth Thermal Receipt Printer With Automatic Cutter

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH;UL
    Model Number : MS-380
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,000 units/monthly
    Price : USD 1~200/set
    • Product Details
    • Company Profile

    76mm Impact Dot Matrix Bluetooth Thermal Receipt Printer With Automatic Cutter

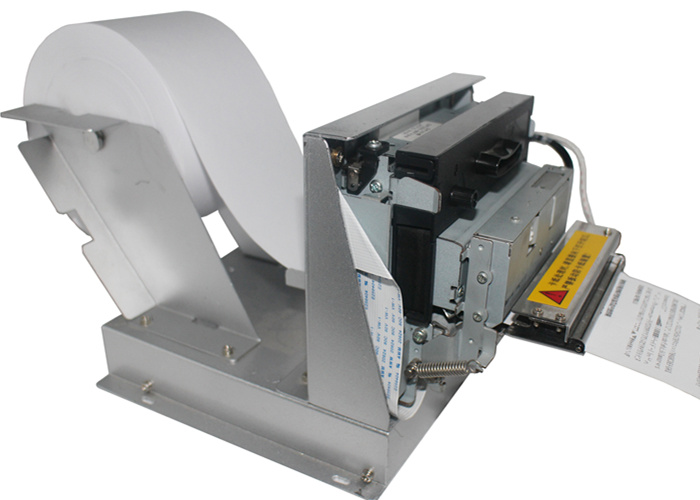

    76mm Impact Dot Matrix Kiosk Printer Module With Automatic Cutter


    Quick Detail:


    ► High speed

    ► Printer mechanism DP380

    ► Utra big paper holder

    ► Automatic cutter

    ► paper jam prevention bezel

    ► Paper near end detection

    ► Black mark detection


    Description:


    MS-380 is 76mm impact dot matrix printer pro solution used for bank kiosk system.


    Specification:


    Mechanism

    DP380

    Printing method:

    serial impact dot matrix (9 pins)

    Printing direction:

    bi-directional (logic seeking control)

    Printing speed:

    4.3 lines/sec

    Number of columns:

    approx 42 columns

    Total no of dots:

    210 dots

    Font:

    7*9 matrix

    Number of pins:

    9 pins

    Character size(W*H):

    1.25*3.12mm(7*9 dots)/1.25*2.42mm(7*7 dots)

    Character pitch:

    1.59mm

    Line spacing:

    minimum 0.176mm (1/144 inch)

    Home position sensor:

    photo interrupter

    Paper end sensor:

    photo interrupter

    Stepping motor voltage:

    DC 24V±5%

    Paper width:

    76mm ( normal paper)

    Copy capability:

    original+1 copy

    Ink ribbon cartridge:

    two colors( red and black), single color(black)

    Paper feeding speed:

    34 lines/sec

    External dimension:

    349.44*166.66*153.6 mm

    Weight:

    2.14 kg

    Reliability: mechanism:

    MCBF 5.0 million lines/ head: 100 million characters

    Controlling board


    Interface:

    parallel; RS-232; USB

    Font:

    7*9

    Command set:

    ESC/POS

    CPU:

    72 MHz

    NV Flash

    2 M bytes

    SRAM:

    64k bytes

    Driver:

    windows7/xp/win8/Android OS

    Total weight

    1.15 kg

    Accessories:

    paper near end sensor, paper presenter unit, paper bezel, power supply unit; auto cutter; cable


    Application:


    Self-service terminal; ticket vendor; parking system; coupon machine; healthcare equipments, bill payment machine, inquiry machine, financial kiosk and more


    Competitive Advantage:


    Certificated product

    Customization service offer

    Product performance

    NV logo download support

    Small order accepted

    Buyer label offer

    Prompt delivery


    Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
