    Medical Printer Kiosk Mini Thermal Printer Module Label Sticker Printing

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-345
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 3,000 units/monthly
    Price : USD1~200/piece
    • Product Details
    • Company Profile

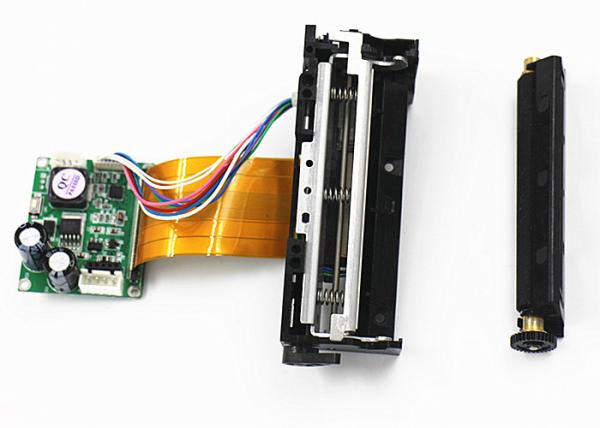

    Medical Printer Kiosk Mini Thermal Printer Module Label Sticker Printing

    medical printer Thermal Kiosk Printer Module Label Sticker Printing


    Quick details:


    Compatible printer head LTPV345

    High speed max85mm/s

    RS-232 and TTL interfaces by option

    Label and thick thermal paper supporting

    Platen-free design for easy paper loading

    Vertical( 90°) paper feeding

    Low noise


    Description:


    MS-345 is designed for 80 mm thermal medical printer solution, which printer mechanism is completely compatible with LTPV345. it also support label sticker printing.


    specification:

    Mechanism


    Printing Method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dots/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Paper thickness

    60~135 um

    Printing speed

    max 85 mm/s

    Paper feeding direction

    90°

    sensor

    Thermal head temperature: thermistor

    Head up: photoelectric sensor

    Paper out :photo interrupter

    Operation voltage(V)

    Vdd:4.5 to 5.5

    Vp:4.2 to 8.5

    Current (A)

    Printer head: 3.33

    Motor: 1.0

    Reliability

    Circuit: over 110 million pulses

    Mechanism: over 50 km

    Working temperature

    0 – 50 ℃

    Dimension (L x W x H)

    93.0 X 34.5 X 39.5 mm

    Weight

    About 95 g


    Controlling board


    Interfaces

    RS-232/TTL

    Power supply

    DC 8V~18V

    Flash memory

    128k

    SRAM

    20k

    Dimension(L*W*H)

    46*39*23 mm

    weight

    1.8 g


    Application:


    Measure/medical device; industrial equipment; weight scale; fire controller; analyzer printer and more


    Competitive Advantage:

    1. Low cost
    2. Brand-name printer parts
    3. Android system support
    4. Customization offer
    5. Prompt delivery
    6. Small order accepted
