    Thermal kiosk 2 inch small printing machine panel mount printers for medical facility

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-205
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 10,000 units/monthly
    • Product Details
    • Company Profile

    Thermal kiosk 2 inch small printing machine panel mount printers for medical facility

    Thermal kiosk 2 inch small printing machine panel mount printers for medical facility


    Quick details:


    Mini compact panel structure

    Easy paper loading

    90°paper feeding

    Diameter roll: max 23mm

    Low driving voltage is 2.7V~5.5V

    Mechanism is compatible with APS-SS205

    Low noise


    Description:

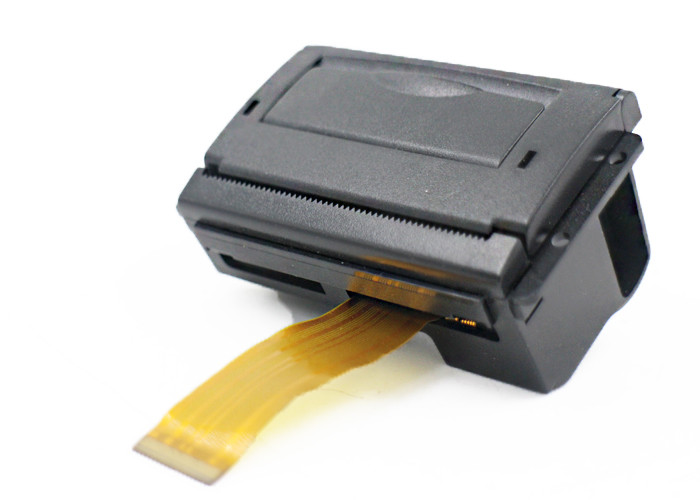

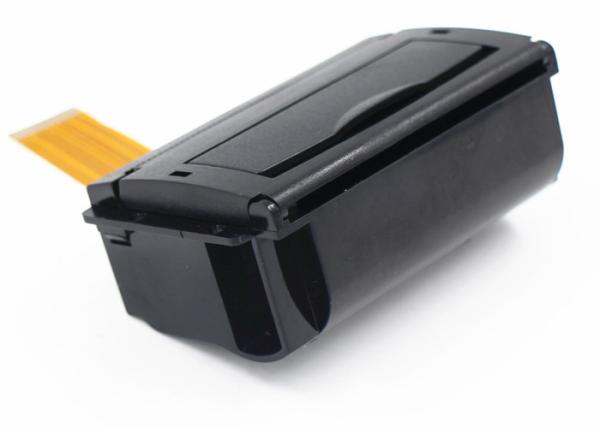

    MS-205 is one type of mini thermal panel printer, which is easily built in medical instruments and handheld terminals.


    Specification:


    Mechanism


    Printing method

    Thermal dot line printing

    Dot structure

    384 dots/line

    Dot pitch

    8 dots/mm

    Printing width

    48 mm

    Printing speed

    35~70mm/s

    Paper width

    58 mm

    Paper diameter

    23mm(max)

    Paper thickness

    60-100 um

    Paper loading

    Easy paper loading

    Character size

    12*24, 32 characters/line

    24*24, 16 characters/line

    8*16, 48 characters/line

    16*16, 24 characters/line

    Power supply

    Printer head

    4.2V~8.5V, 1.9A(5v) (Average)

    Dynamo

    4.2V~8.5V, 0.5A(5v) (max)

    Logic voltage

    2.7V~5.5V, 0.05A(5v) (max)

    Dimensions (W*D*H)

    79.15*38.17*44.19 mm (depth:45mm)

    Weight

    32 g

    Electric life:

    Wear life

    More than 110,000,000 pulses

    More than 50 km

    Ambient condition

    Operating temperature

    0 ℃~50℃

    Operating humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage humidity

    10~90% RH

    Sensor

    TPH temperature

    thermistor

    Paper end detection

    Photo interrupter


    Controlling board:


    Interface

    RS-232/TTL/USB

    Driver power

    DC 8.5V/2.5A

    Dimension

    30*50

    Weight

    2.3 g


    Application:


    Handheld mobile device; ECR/financial POS; weighing scale; fire controller; medical device; measuring instrument; cash register; vehicle-mounted recorder; taxi meter and more


    Competitive Advantage:


    • printer performance
    • low cost
    • Android system support
    • Customization offer
    • Prompt delivery
    • Small order accepted

    Thermal kiosk 2 inch small printing machine panel mount printers for medical facility
