    24V copy function portable receipt printer for diversification kiosk applications

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-380H
    Certification : CE; ROSH;UL
    Price : USD1~90/piece
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,000 units/monthly
    Delivery Time : 5~8 days
    • Product Details
    • Company Profile

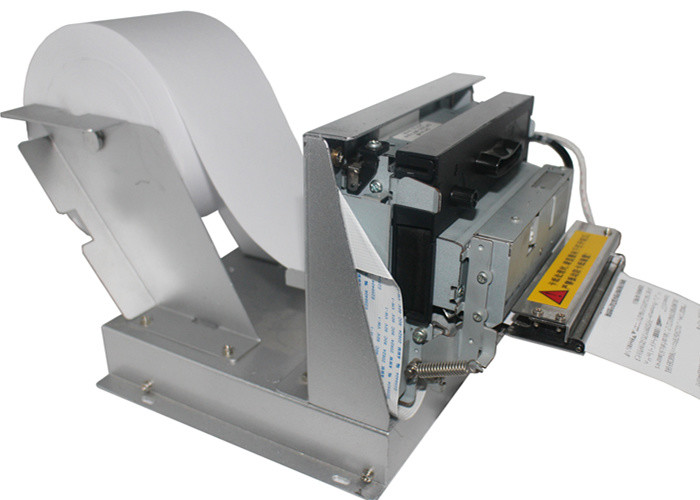

    24V copy function portable receipt printer for diversification kiosk applications

    Impact 9 Pin Dot Matrix Printer


    Quick Detail:


    ► Printer mechanism DP380

    ► Utra big paper holder

    ► Automatic cutter

    ► paper jam prevention bezel

    ► Paper near end detection

    ► Black mark detection

    ►Anti paper jam and anti tear off functions


    Description:


    MS-380 is designed for financial payment kiosks with big paper holder. its unique " paper jam prevention " design saves more user mantainenance. It take use of original printer machianism and integrates with high quality printer controller.


    Specification:


    Mechanism

    DP380

    Printing method:

    serial impact dot matrix (9 pins)

    Printing direction:

    bi-directional (logic seeking control)

    Printing speed:

    4.3 lines/sec

    Number of columns:

    approx 42 columns

    Total no of dots:

    210 dots

    Font:

    7*9 matrix

    Number of pins:

    9 pins

    Character size(W*H):

    1.25*3.12mm(7*9 dots)/1.25*2.42mm(7*7 dots)

    Character pitch:

    1.59mm

    Line spacing:

    minimum 0.176mm (1/144 inch)

    Home position sensor:

    photo interrupter

    Paper end sensor:

    photo interrupter

    Stepping motor voltage:

    DC 24V±5%

    Paper width:

    76mm ( normal paper)

    Copy capability:

    original+1 copy

    Ink ribbon cartridge:

    two colors( red and black), single color(black)

    Paper feeding speed:

    34 lines/sec

    External dimension:

    349.44*166.66*153.6 mm

    Weight:

    2.14 kg

    Reliability: mechanism:

    MCBF 5.0 million lines/ head: 100 million characters

    Controlling board


    Interface:

    parallel; RS-232; USB

    Font:

    7*9

    Command set:

    ESC/POS

    CPU:

    72 MHz

    NV Flash

    2 M bytes

    SRAM:

    64k bytes

    Driver:

    windows7/xp/win8/Android OS

    Total weight

    1.15 kg

    Accessories:

    paper near end sensor, paper presenter unit, paper bezel, power supply unit; auto cutter; cable


    Application:


    Self-service terminal; ticket vendor; parking system; coupon machine; healthcare equipments, bill payment machine, inquiry machine, financial kiosk and more


    Competitive Advantage:


    Customization service offer

    Product performance

    NV logo download support

    Small order accepted

    Buyer label offer

    Prompt delivery
