    Reliable performance panel mount printers for lockers , Multiple optional accessories

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-N58V
    Certification : CE; ROSH
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 5,000 units/monthly
    Delivery Time : 5~8 days
    Price : USD1~70/piece
    • Product Details
    • Company Profile

    Reliable performance panel mount printers for lockers , Multiple optional accessories

    Reliable performance panel mount printers for lockers , Multiple optional accessories


    Description:

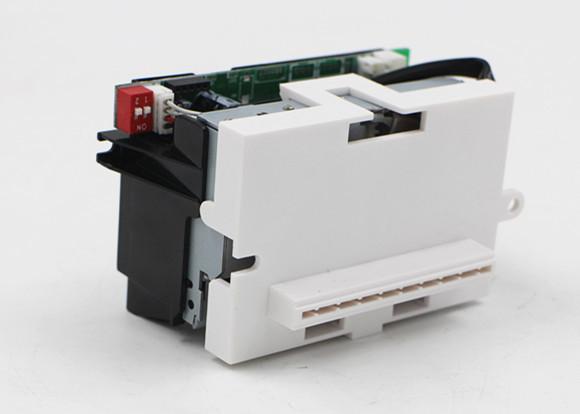

    MS-N58V is one of model self-service ticket printer which belongs to 2 inch thermal printer. it is widely used for health kiosk.


    Quick details:

    ► Dismountable cutter

    ► panel mount structure

    ► Ultra high speed max150 mm/s

    ► Paper jam prevention design

    ► Mechanism compatible with FTP-628MCL101

    ► Windows/Linux/Android OS support

    ► Chassis installation type

    ► Adjustable cutting method


    Specification:


    mechanism:

    MS628

    Printing method

    Thermal dot line printing

    Dots/line

    384 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    58 mm

    Printing width

    48 mm

    Paper thickness

    54~78 um

    Printing speed

    150 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Cutting type

    Full/partial (by adjustable)

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    2.6~3.6 V

    Motor

    4.75 ~9.5 V

    Dimension (L*W*H)

    75*37*15.5 mm ( FPC L= 73mm)

    Weight

    Approx 1.15 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 3,500,000 cuts

    Thermal head: over 85 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:

    MS-502

    Interface

    RS-232/TTL /USB

    power supply

    DC 8.5~12V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    2 M NV Flash memory

    Buffer

    4 KB

    SRAM

    20 KB

    Driver

    USB driver

    System

    Windows/Android/Linux OS

    Accessories:

    paper near end sensor

    Interface connector

    Power supply unit

    Cable


    Application:


    Healthcare kiosks; weighing scales; parking machines; queue management system; coupon machines; lottery printers; self-service terminals; attendance devices; ticket vendor; multimedia kiosk and more


    Competitive Advantage:


    • OEM offer
    • Brand-name printer parts
    • Android system support
    • Customization offer
    • Prompt delivery
    • Small order accepted
