Brand Name : | MASUNG |
Model Number : | MS-FPT301 |
Certification : | CE; ROSH |
Price : | USD1~200/piece |
Payment Terms : | T/T/Western union |
Supply Ability : | 5,000 units/monthly |
Delivery Time : | 5~8 days |

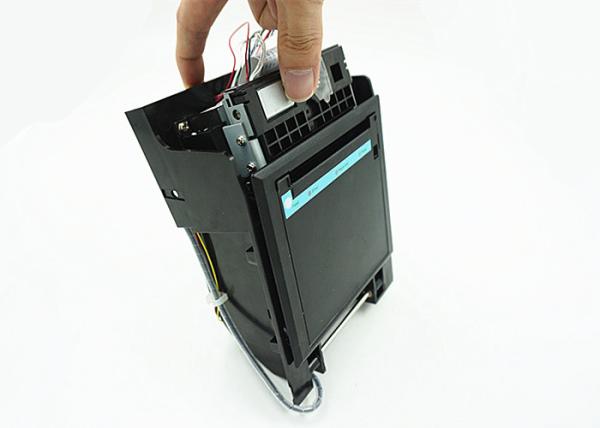

3 Inch Panel Mount Printers , customization mobile receipt printer for payment kiosk
Features:
Specification
Model | MS-FPT301 | |
Mechanism | Printing method | Thermal dot line |
Dot numbers(dots/line) | 640 dots/line | |
Resolution (dots/mm) | 8 dot/mm | |
Printing speed(mm/s)max | 200 mm/s | |
Paper width(mm) | 80 | |
Printing width(mm) | 80 | |
Roll diameter max | Φ80 mm | |
Paper thickness | 60~80 μm | |
Paper loading method | Easy loading | |
Auto cutting | YES | |
sensor | Printer head | thermistor |
Paper end | Photo interrupter | |
Power feature | Working voltage(Vp) | DC 24V |
Power consumption | 1.75A(average) | |
Peak current | 4.64A | |
Environment | Working temperature | 5~45℃ |
Working humidity | 20~85%RH | |
Storage temperature | -20~60℃ | |
Storage humidity | 5~95%RH | |
Reliability | Cutter life (cuts) | 1,200,000 |
Pulse | 100,000,000 | |
Printing length(km) | Over 150 | |
Property | Dimension (mm) | 84×139×186 |
Weight (g) | 760 ±10 | |
Support | Interface | RS-232C/USB |
Commands | ESC/POS | |
Driver | Windows/Linux/Android OS |
Application:
Queue management system, visitor attendance terminal, ticket vendor, POS, medical instrument, body scales and more
