    Compact Front Panel Mounting Printer Super Big Paper Roll Bucket

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-FPT201
    Certification : CE;ROHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 2500 set per month
    • Product Details
    • Company Profile

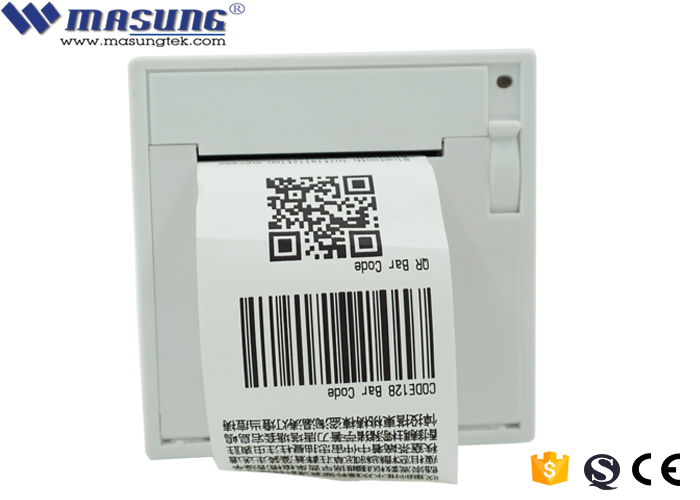

    Compact Front Panel Mounting Printer Super Big Paper Roll Bucket

    Super Big Paper Roll Bucket Compact Front Panel Mounting Printer


    MS-FPT201 series printer have two models, MS-FPT201 and MS-FPT201K, this manual is aim to introduce the two model printers, so terminal user and developer can know them better, there is only one difference between the two models.


    Specification:

    Mechanism model:CAPD245

    Mechanism

    Printing methodThermal dot line
    Dot numbers(dots/line)384 dots/line
    Resolution (dots/mm)8 dot/mm
    Printing speed(mm/s)100 mm/s
    Paper width(mm)58
    Printing width(mm)48
    Roll diameter maxΦ56 mm
    Paper thickness60~80 μm
    Paper loading methodEasy loading
    Auto cuttingYES
    sensorPrinter headthermistor
    Paper endPhoto interrupter
    Power featureWorking voltage(Vp)DC12~ 24V
    Power consumption2A(average)
    Peak current4A
    EnvironmentWorking temperature-10~60℃
    Working humidity20~85%RH
    Storage temperature-20~60℃
    Storage humidity10~90%RH
    ReliabilityCutter life (cuts)1,200,000
    Pulse100,000,000
    Printing length(km)Over 150
    PropertyDimension (mm)101×56×100
    Weight (g)FPT201: 250
    SupportInterfaceRS-232C/USB
    CommandsESC/POS
    DriverWindows/Linux/Android OS

    Compact Front Panel Mounting Printer Super Big Paper Roll Bucket MS-FPT201: 58mm thermal panel printer with “paper roll bucket opening & closing by button”
