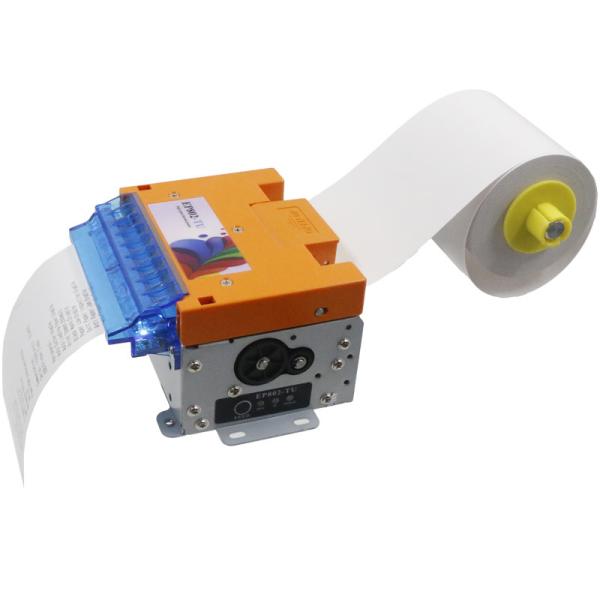

Small footprint 3 inch heavy duty thermal ticket printer machine EP802-TM
Product profile
The MASUNG EP802-TM 3 inch thermal ticket printer machine is designed special for sports betting kiosks .
Small size and flexible mounting methods you can put these kiosk printers anywhere.Flexible mounting options include the vertical orientation 90° position for the thinnest of vertical footprints.
Features
Small compact-shelf and door mount design
Fast ,high quality 203 dpi output at print speed up to 250 mm/s with 2D barcode capacity
Adjustable paper width :60/80/82.5 mm
80 mm or 150 mm diameter roll paper (standard)
Paper thickness :from 55 to 80gsm
Full and partial cut option
Label printing option
Smart bezel :combined anti-block &anti-drag system
Simple paper loading using standard receipt style paper rolls with an outside diameter up to 120mm and the option of using either a 12.5mm or 25mm core.
Specifications
| Control board |
EP802_3 |
| Thermal printer head |
Brand name: ROHM |
| Auto cutter |
Brand name: OYANE |
|
Printing
|
Printing method |
Thermal dot line |
| Dots |
640dots |
| Speed |
250mm/s (max) |
| Printing width |
80mm (max) |
| Paper width |
80/82.5 mm |
| Paper thickness |
0.06~0.2 mm |
| Paper loading |
Easy loading ( horizontal 180°) |
| Cutting method |
Full/partial |
| Print head life |
Over 100KM |
| Printing format |
inverse,underline,italic,bold |
|
Cutter life
|
60μm paper |
1,000,000 cuts |
| 200μm paper |
500,000 cuts |
| |
Baud rate |
9600,19200,38400,115200 |
| Font |
ASCII |
9*17,12*24 |
| Chinese |
24*24dots |
| Detection |
TPH temperature |
Temperature sensor |
| Mechanism open detection |
Micro switch |
| “anti-drag ticket detection |
Mechanical sensor |
| Paper blocked detection |
| Paper near end detection |
Photo-interrupter |
| Black mark detection |
| Paper cutting detection |
| Paper presence detection |
| Conditions |
Power supply |
DC24±10% V |
| Load current |
1.5A continuous
61mA Standby
3.2 A Peak
|
| Interfaces |
RS232,USB |
| Paper |
Paper type |
Thermal paper roll |
| Recommended paper type |
KANZAN KF50
KP460
MITSUBISHIPG5075
TL4000
|
| Environment |
operating temperature |
-10~60℃(no condensation) |
| operating humidity |
20%~80%RH(40℃,85%RH) |
| Storage temperature |
-20~70℃(no condensation) |
| Storage humidity |
10%~90%RH(50℃,90%RH) |
| Dimension |
Paper holder 45° upward ( 150mm paper roll) |
L*W*H=219.5*119.30*87.3mm |
| Paper holder horizontal (150 mm paper roll) |
L*W*H=294.5*119.30*87.5mm |
| Paper roll vertical (150 mm paper roll) |
L*W*H=154.2*119.30*258.6mm |
| Weight |
Approx 1.45kg (without paper roll ) |
1. How to order ticket printer machine
1)Products details communication and confirmation
2)Quote with different quantities
3)Samples order can be provided
4.)Comfirm order after samples get approved
2. Minimum Quantity of ticket printer machine
There is no minimum order quantity .1 unit order is available ,even the total product value is under 100 USD
3. Payment method for ticket printer machine
Our company (Masung ) has served bank of American accounts .We also receive checks and bank transfer .30% deposit
in advance after sample is confirmed ,70% balance before shipping .
4. Shipment of ticket printer machine
We accept all kinds of shipping ways ,including express ,air,sea ,truck or pick up by customers personally .
5. Lead time of ticket printer machine
Vary greatly on each order .Below are the normally lead time (after getting the payment)as a reference :
Samples: 2~3 work days
10~100 units : 5~7 work days
100~500 units ,10~15 work days
500~1000 units ,20~35 work days
Over 1000 units ,please confirm with our sales person .
6. Warranty of ticket printer machine
We have the top 1 level trade assurance which 100% protect your money and lead time .Our warranty of the products
are about 12+1 months from the shipment normally ,some designated models can have as long as 24 months warranty .For mass order ,we would like to supply some spare parts with shipment for local quickly repair ..After that ,you can returned failure parts for rework and analysis.
