High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245

    Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers

    Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers
    • Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers
    • Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers
    • Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers
    • Buy cheap High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245 from wholesalers

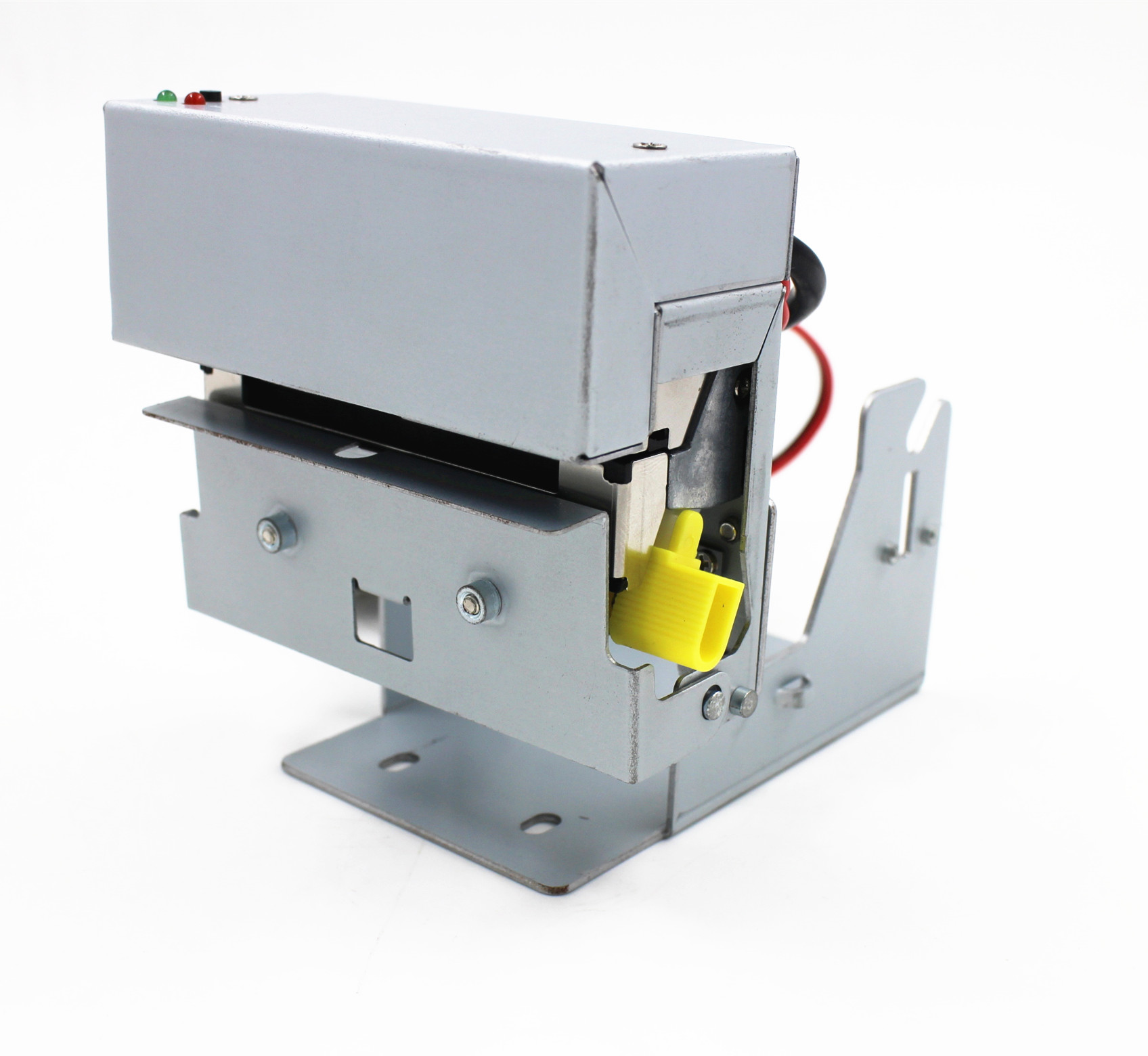

    High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-D245
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 3,000 units/monthly
    Price : USD 85~100/set
    • Product Details
    • Company Profile

    High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245

    High Speed Android USB 2 inch Thermal Printer Pro Solutions Mechanism CAPD245


    Quick details


    Full /partial cutting mode (by adjustable)

    Windows/Android/Linux system support

    Hebrew language printing support

    Brand printer mechanism CAPD245

    Ultra high speed 150 mm/s

    Wide input voltage range DC9 ~24V


    Specification:


    mechanism:

    CAPD245

    Printing method

    Thermal dot line printing

    Dots/line

    384 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    58 mm

    Printing width

    48 mm

    Paper thickness

    54~78 um

    Printing speed

    150 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Paper loading

    Easy loading

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    2.6~3.6 V

    Motor

    4.75 ~9.5 V

    Dimension (L*W*H)

    117.85*103.5*93 mm

    Weight

    Approx 1.15 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:

    Interface

    RS-232 /USB

    power supply

    DC 12V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    2 M NV Flash memory

    Buffer

    4 KB

    SRAM

    20 KB

    Driver

    USB driver

    System

    Windows/Android/Linux OS

    Accessories:

    paper near end sensor;

    Paper holding unit;

    Paper bezel (paper guide mouth)

    Interface connector

    Power supply unit

    Cable


    Applications:


    kiosks, bank call distributor, parking management system, payment machine, gas station, coupon machine, lottery device, ATM, self-service terminal, ID automation, attendance machine and more


    Competitive Advantage:

    • OEM offer
    • Brand-name printer parts
    • Android system support
    • Customization offer
    • Prompt delivery
    • Green product
    • Small order accepted
