    Medical Device Kiosk Printer Module , High Speed USB Thermal Label Printer

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-V445
    Certification : CE; ROSH
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,000 units/monthly
    Delivery Time : 5~8 days
    Price : USD1~200/piece
    • Product Details
    • Company Profile

    Medical Device Kiosk Printer Module , High Speed USB Thermal Label Printer

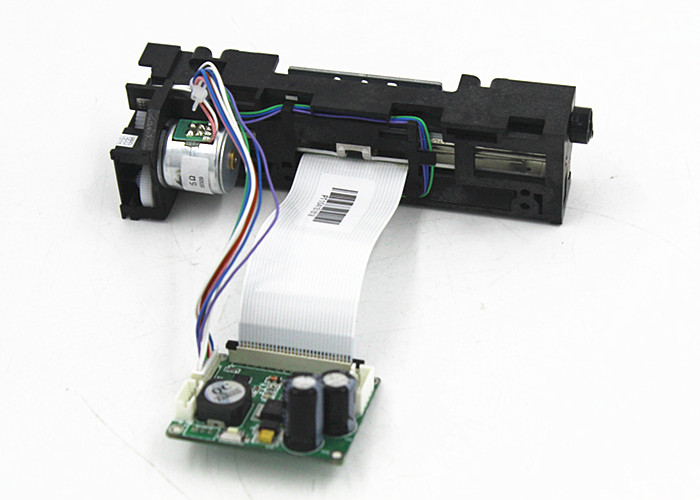

    Medical Device Kiosk Printer Module High Speed USB Label Printer


    Quick details:


    RS-232 and TTL interfaces by option

    Label and thick thermal paper supporting

    Platen-free design for easy paper loading

    Vertical( 90°) paper feeding

    Seiko printer head LTPV445

    Ultra printing width 112mm

    High speed max85mm/s


    Description:


    MS-V445 it is designed by following brand name printer mehcanism LTPV445. this special printing width 112 mm is widely used for medidal instrument , it supports label printing


    specification:


    Mechanism

    LTPV445

    Printing Method

    Thermal dot line printing

    Dots/line

    832 dots/line

    Dot pitch

    8 dots/mm

    Paper width

    112 mm

    Printing width

    104 mm

    Paper thickness

    60~135 um

    Printing speed

    max 85 mm/s

    Paper feeding direction

    90°

    sensor

    Thermal head temperature: thermistor

    Head up: photoelectric sensor

    Paper out :photo interrupter

    Operation voltage(V)

    Vdd:4.5 to 5.5

    Vp:4.2 to 8.5

    Current (A)

    Printer head: 3.33

    Motor: 1.0

    Reliability

    Circuit: over 110 million pulses

    Mechanism: over 50 km


    Working temperature

    0 – 50 ℃

    Dimension (L x W x H)

    125X 34.5 X 39.5 mm

    Weight

    About 130 g


    Controlling board


    Interfaces

    RS-232/TTL

    Power supply

    DC 8V~18V

    Flash memory

    128k

    SRAM

    20k

    Dimension(L*W*H)

    46*39*23 mm

    weight

    1.8 g


    Application:


    Measure/medical device; industrial equipment; weight scale; fire controller; analyzer printer , voting machine and more


    Competitive Advantage:

    • OEM offer
    • Low cost
    • Brand-name printer parts
    • Android system support
    • Customization offer
    • Prompt delivery
    • Small order accepted

    Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
