    Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-D347-BE
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 3,500 units/monthly
    Price : USD1~200/Piece
    • Product Details
    • Company Profile

    Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347

    Small ESC / POS Lan Thermal Printer Module for Multimedia Kiosk CAPD347​


    Quick details:

    • Barcodes printing
    • Auto cutting (full/partial)
    • Multiple sensors detection
    • Original printer mechanism CAPD347
    • High speed 200mm/s
    • Full/partial cutting method (by adjustable)
    • Paper jam detection
    • Bezel LED indication
    • Interface diversification
    • Dragging paper detection
    • Blackmark detection
    • Print label sticker
    • Multiple barcodes support

    Description:

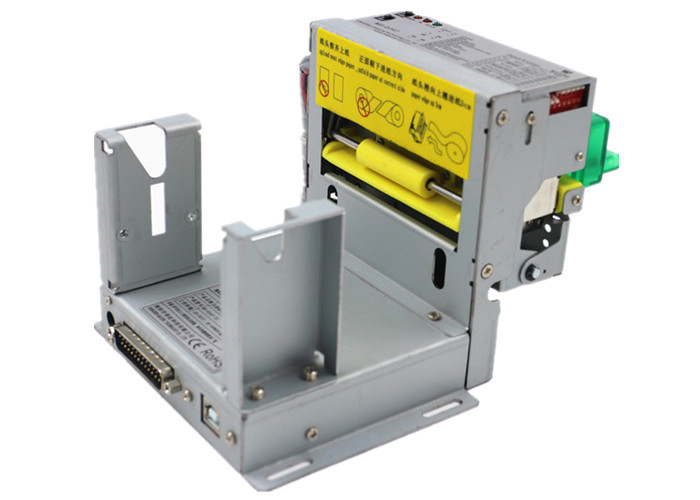

    MS-D347-BE is small size 3 inch thermal printer with "paper jam prevention" design. it belongs to barcode label printers also.


    Specification:

    Mechanism:

    CAPD347

    Printing method

    Thermal dot line printing

    Dot pitch

    8 dot/mm

    Dots/line

    576 dots/line

    Paper width

    80 mm

    Printing width

    72 mm

    Paper thickness

    54~78 um

    Roll diameter

    Max 90 mm ( external roll support)

    Printing speed

    200 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Paper end

    Photo interrupter

    Paper press shaft

    Mechanical switch

    Head temperature

    Thermistor

    Cutting type

    Full/partial ( by adjustable)

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    4.75~5.25 V

    Motor

    21.6~26.4 V

    Dimension (L*W*H)

    227.5*127.8*131.45 mm

    Weight

    Approx 1.92 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work humidity

    20~85% RH

    Work temperature

    -10 ℃~50℃

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:


    power supply

    DC 24V/2.5A

    Interface

    RS-232 /USB/Parallel

    Command set

    ESC/POS

    Firmware location

    512KB Flash memory

    Barcode

    supported

    SRAM

    64KB (extra)

    Buffer

    32 KB

    System

    Windows/Android/Linux OS

    Driver

    Parallel/USB driver

    Accessories:

    Sensors

    paper near end sensor;

    paper jam sensor;

    dragging paper sensor;

    Paper holding unit;

    Paper bezel(paper guide mouth)

    Power supply unit

    Interface connector;

    Cable


    Application:


    parking system; payment kiosk; ticket vendor; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer; Tax and bill printing and more


    Competitive Advantage:

    • Compatible with ESC/POS commands set
    • Pass CE and ROHS certification
    • Wide range working temperature
    • Customization offer
    • Prompt delivery
    • Product performance
    • Small order accepted
    • Buyer label offer
    • Brand-name printer parts
