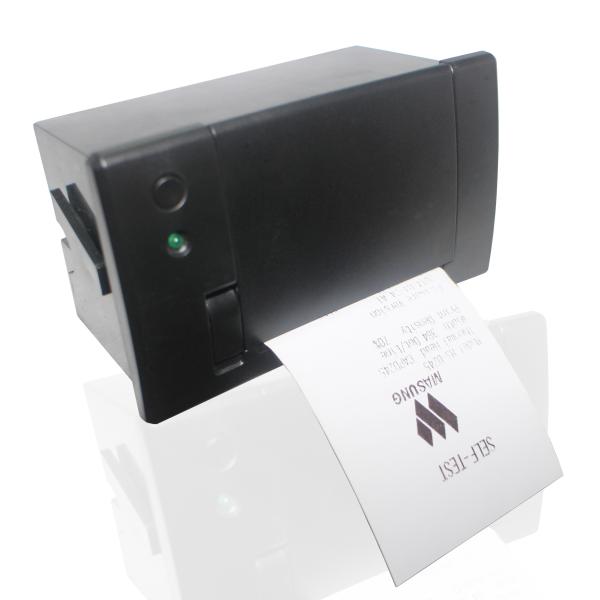

    Compatible Thermal Barcode Label Printers Built In Control Board

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-305(b)
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 10,000 units/monthly
    • Product Details
    • Company Profile

    Compatible Thermal Barcode Label Printers Built In Control Board


    Compatible Thermal Barcode Label Printers Built In Control Board



    Quick details:



    Barcode printing
    Panel LED indicator
    High speed 70 mm/s
    Built-in control board
    Bucket for big diameter paper roll
    2 inches panel printer with big roll bucket
    Printer mechanism compatible with FTP628MCL701




    Description:



    MS-305(b) belongs to popular panel mount barcode label printers. it support easily open panel integrated with indicator.


    Specification:

    Mechanism

    MS-305

    Printing method

    Thermal dot line printing

    Dots number

    384 dots/line

    Printing density

    8 dots/line

    Printing speed

    Max 70 mm/s

    Printing width

    48 mm

    Paper width

    57.5±0.5 mm

    Roll diamaeter

    Max 40 mm

    Working voltage

    DC 4.2~8.5 V

    Head sensor

    thermistor

    Paper sensor

    Photo interrupter

    Reliability

    Mechanism life: over 50 km;
    Pulse numbers: 10,000,000,000 times

    Working environment

    Temperature:0~50℃
    Humidity: 20~85% RH

    Control board


    Interface

    TTL/RS-232

    Command set

    ESC/POS

    Firmware location

    Flash memory

    Buffer

    4 K bytes

    Supporting devices

    Paper end sensor, paper near end sensor

    Total weight

    Approx 63 g

    Panel dimension

    103(L)*57(W)*51(H)


    Accessories

    Panel fixed holder, cable


    Application:


    Panel printer, medical instrument, self-service terminal, vehicle-mounted recorder, meters and measurement device,gas pump station and more


    Competitive Advantage:


    Certificated products
    product performance
    Brand-name printer parts
    Android system support
    Buyer label offer
    Prompt delivery
    Low cost
