    Horizontal Mount Ticket Dispenser 3" Label Printer Module With Presenter Unit

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-D347-TLP(a)
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,500 units/monthly
    Price : USD199~200/piece
    • Product Details
    • Company Profile

    Horizontal Mount Ticket Dispenser 3" Label Printer Module With Presenter Unit

    Horizontal Mount Ticket Dispenser 3" Label Printer Module With Presenter Unit​


    Quick details:


    ► Original printer head CAPD347

    ► Horizontal mount

    ► High speed 200mm/s

    ► Realiable auto cutter

    ► Anti-jamming system

    ► Retracting fucntion

    ► Printer head self-diagnostic function

    ► Windows/Android/Linux support

    Description:

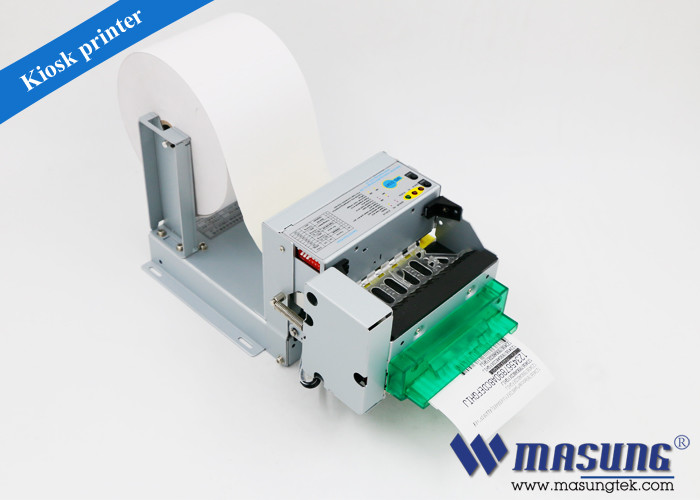

    MS-D347-TLP(a) is one model of 3 inch thermal printer with paper presenter unit. which is compact and easily built in terminals and kiosks. reliable auto cutter makes it more outstanding.


    Specification:

    Mechanism:

    CAPD347

    Printing method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Roll diameter

    Max 90 mm ( external roll support)

    Paper thickness

    54~78 um

    Printing speed

    200 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Cutting type

    Full/partial ( by adjustable)

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    4.75~5.25 V

    Motor

    21.6~26.4 V

    Dimension (L*W*H)

    227.5*127.8*131.45 mm

    Weight

    Approx 1.92 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:


    Interface

    RS-232 /USB/Parallel

    power supply

    DC 24V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    512KB Flash memory

    Buffer

    32 KB

    SRAM

    64KB (extra)

    Driver

    Parallel/USB driver

    System

    Windows/Android/Linux OS

    Accessories:

    Sensors

    paper near end sensor;

    paper jam sensor;

    dragging paper sensor;

    Paper holding unit;

    Paper bezel(paper guide mouth)

    Interface connector;

    Power supply unit

    Cable

    Application:


    parking system; payment kiosk; ticket vendor; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer and more


    Competitive Advantage:


    Brand-name printer parts

    Customization offer

    Small order accepted

    Buyer label offer

    Prompt delivery

    Product performance

    Certificated product

    Horizontal Mount Ticket Dispenser 3" Label Printer Module With Presenter Unit
