    OEM 80mm Barcode Kiosk Thermal Printer , Desktop Thermal Embedded Printer

    Ask Lasest Price
    Brand Name : MASUNG
    Certification : CE; ROSH
    Model Number : MS-D347-TL
    Delivery Time : 5~8 days
    Payment Terms : T/T/Paypal/Western union
    Supply Ability : 2,000 units/monthly
    • Product Details
    • Company Profile

    OEM 80mm Barcode Kiosk Thermal Printer , Desktop Thermal Embedded Printer

    OEM Kiosk Printer Module Barcode Desktop Thermal embedded Printer​


    Quick Detail:


    ► Multiple barcode printing support

    ► Bezel LED indication

    ► Big paper holding unit

    ► Ultra high speed max200 mm/s

    ► Windows/Android/Linux system support

    ► Brand printer mechanism CAPD347

    ► Paper jam prevention support


    Description:

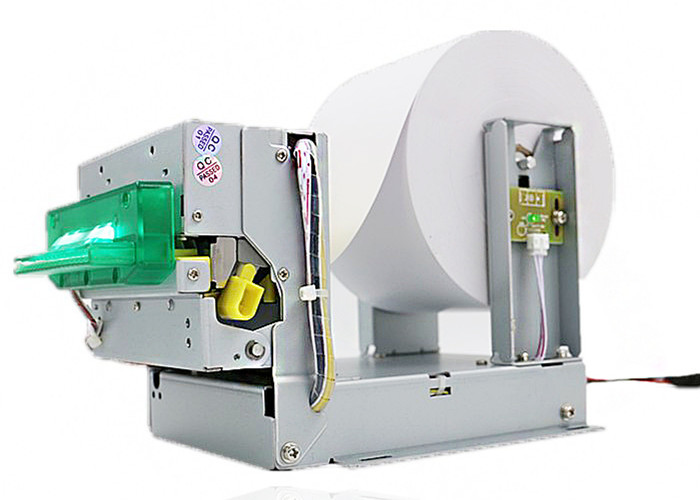

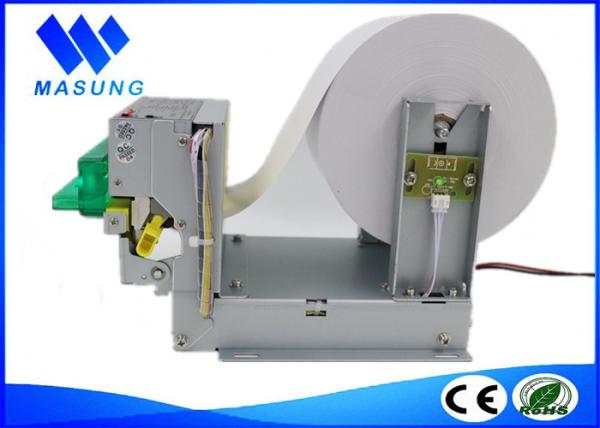

    MS-D347-TL(a) is 80mm barcode kiosk thermal printer, it supports multiple barcodes printing. RS-232/USB/Parallel ports are optional.


    Specification:


    mechanism:

    CAPD347

    Printing method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Paper thickness

    54~78 um

    Printing speed

    170 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Paper loading

    Easy loading

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    4.75~5.25 V

    Motor

    21.6~26.4 V

    Dimension (L*W*H)

    119.45*96.13*80.60mm

    Weight

    Approx 2.18 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:


    Interface

    RS-232 /USB/Parallel

    power supply

    DC 24V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    512KB Flash memory

    Buffer

    32 KB

    SRAM

    64KB (extra)

    Driver

    Parallel/USB driver

    System

    WindowsXP/Win7(32bits or 64 bits)/

    Win8/Android/Linux OS

    Accessories:

    Sensors

    paper near end sensor;

    paper jam sensor;

    dragging paper sensor;

    Paper holding unit

    Paper guide mouth

    Interface connector

    Power supply unit

    Cable


    Application:


    ATM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer; attendance terminals, ID automation machine and more


    Competitive Advantage:


    Small order accepted

    Product performance

    OEM offer

    Brand-name printer parts

    Customization offer

    Prompt delivery
