    200 Mm / S Dot Line Thermal Reciept Printer With Auto Cutter

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-D347-TL
    Certification : CE; ROSH
    Payment Terms : T/T/Western union
    Supply Ability : 3,500 units/monthly
    Delivery Time : 5~8 days
    Price : USD120~150/piece
    • Product Details
    • Company Profile

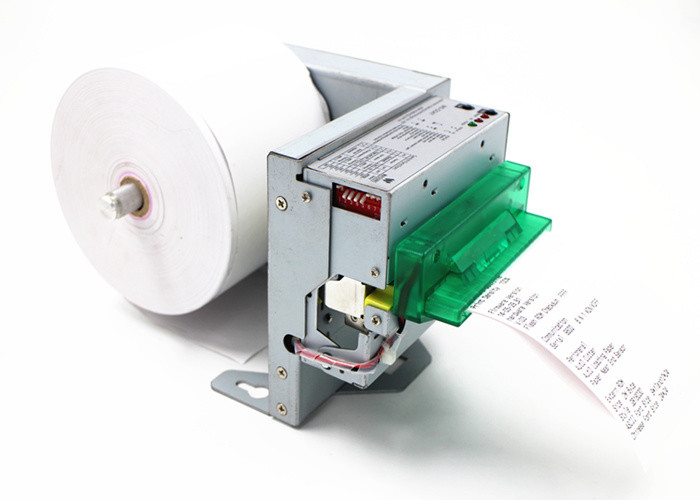

    200 Mm / S Dot Line Thermal Reciept Printer With Auto Cutter

    200 Mm / S Dot Line Receipt Kiosk Thermal Printer With Auto Cutter


    Quick details:

    ► Brand name printer mechanism CAPD347

    ► High speed 200mm/s kiosk thermal printer

    ► Full/partial cutting method (by adjustable)

    ► Paper jam detection

    ► Dragging paper detection

    ► Easy print kiosk thermal printer

    ► Print label sticker kiosk thermal printer

    ► Multiple barcodes support


    Description:


    MS-D347-TL is successfully used for ecuador movice ticket printer. which supports window 8.1 OS.


    Specification:


    Mechanism:

    CAPD347

    Printing method

    Thermal dot line printing

    Dots/line

    576 dots/line

    Dot pitch

    8 dot/mm

    Paper width

    80 mm

    Printing width

    72 mm

    Roll diameter

    Max 90 mm ( external roll support)

    Paper thickness

    54~78 um

    Printing speed

    200 mm/s

    Paper feed direction

    180° horizontal

    Sensors

    Head temperature

    Thermistor

    Paper press shaft

    Mechanical switch

    Paper end

    Photo interrupter

    Cutting type

    Full/partial ( by adjustable)

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Power supply

    Logic circuit

    4.75~5.25 V

    Motor

    21.6~26.4 V

    Dimension (L*W*H)

    227.5*127.8*131.45 mm

    Weight

    Approx 1.92 kg

    Reliability

    Circuit: over 1,000,000,000 pulses

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km

    MCBF: 37,000,000 lines

    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage temperature

    10~90% RH


    Controlling board:


    Interface

    RS-232 /USB/Parallel

    power supply

    DC 24V/2.5A

    Command set

    ESC/POS

    Barcode

    supported

    Firmware location

    512KB Flash memory

    Buffer

    32 KB

    SRAM

    64KB (extra)

    Driver

    Parallel/USB driver

    System

    Windows/Android/Linux OS

    Accessories:

    Sensors

    paper near end sensor;

    paper jam sensor;

    dragging paper sensor;

    Paper holding unit;

    Paper bezel(paper guide mouth)

    Interface connector;

    Power supply unit

    Cable


    Application:


    movice ticket vendor;; parking system; payment kiosk; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer and more


    Competitive Advantage:

    1. Sample is available
    2. ROHS certificated
    3. Small order accepted
    4. Buyer label offer
    5. Brand-name printer parts
    6. Customization offer
    7. Prompt delivery
    8. Product performance

    200 Mm / S Dot Line Thermal Reciept Printer With Auto CutterThank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
