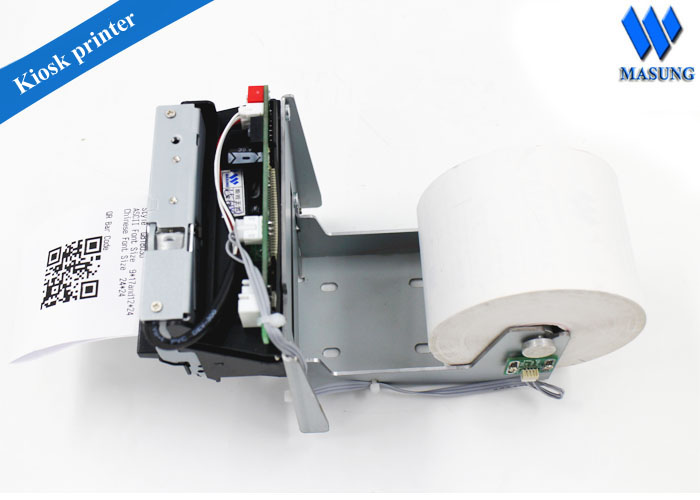

    TTL Interface Panel Mount Printers 2inch High Speed 100 mm/s

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : MS-N58VH
    Certification : CE/RoHs
    Price : 1-200USD/Pieces
    Payment Terms : T/T
    Supply Ability : 5000
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    TTL Interface Panel Mount Printers 2inch High Speed 100 mm/s

    TTL Interface Panel Mount Printers 2inch High Speed 100 mm/s


    Features:


    1. High speed
    2. Mechanism:MS628MCL101
    3. Compact size and high quality
    4. Horizontal paper feeding
    5. Multiple optional accessories
    6. Panel mounting method
    7. Full /partial cutting mode (by adjustable)
    8. Reliable printer mechanism
    9. Wide input voltage range DC12~24 V
    10. Different systems optional

    Specification:


    mechanism:

    MS628MCL101

    Dots/line

    384 dots/line

    Printing method

    Thermal dot line

    Paper width

    58 mm

    Dot pitch

    8 dot/mm

    Printing width

    48 mm

    Printing speed

    100 mm/s

    Paper thickness

    54~100 um

    Paper loading

    Auto loading

    Paper feed direction

    180° horizontal

    Font size

    ASCII:9*17;12*24;

    Chinese: 24*24

    Dimension (L*W*H)

    98*81*60 mm

    Weight

    Approx 0.23 kg

    Reliability

    Cutter: over 7,000,000 cuts

    Thermal head: over 100 km


    Ambient environment

    Work temperature

    -10 ℃~50℃

    Work humidity

    20~85% RH

    Storage temperature

    -25℃~70℃

    Storage humidity

    10~90% RH

    power supply

    DC 12~24V/3A

    Interface

    RS-232 /TTL

    Command set

    ESC/POS

    System

    WinXP/Win7/Win8/Android/Linux OS

    Accessories:

    paper near end sensor;


    Roll spindle


    Paper bezel


    Paper holding unit;


    Power supply unit


    Interface connector


    Cable


    Applications:


    Kiosk, parking machine, queue management system, gas pumps station, ticket dispenser, lottery device, coupon machine, self-service terminal, ID automation, attendance terminal and more


    Competitive advantages:

    1. Customization offer
    2. Small order available
    3. Paper holding unit
    4. Power supply unit
    5. Interface connector
    6. Wide working temperature range
    7. Wide storage temperature range
