    Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting

    Ask Lasest Price
    Brand Name : MASUNG
    Model Number : W80
    Certification : CE/ROHS
    Price : 180-185USD/piece
    Payment Terms : T/T
    Supply Ability : 2,500 units/monthly
    • Product Details
    • Company Profile

    Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting

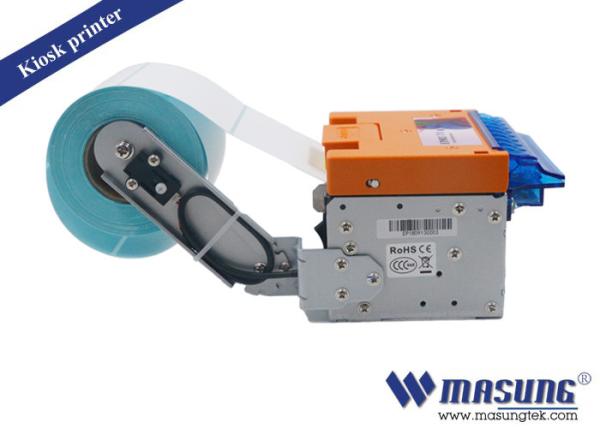

    Multiple LEDs detection design 80 mm kiosk thermal printer for sports betting

    High speed heavy duty kiosk thermal printer

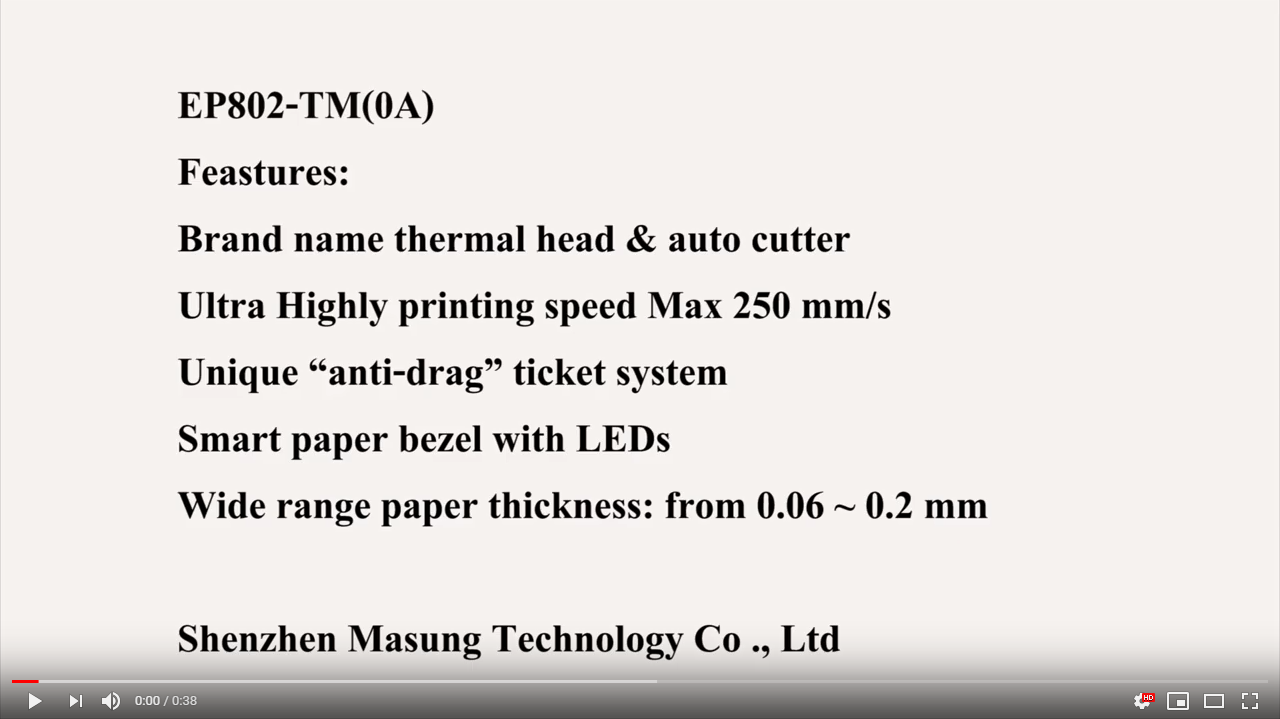

    Features of kiosk thermal printer
    Sturdy adjustable paper roll bracket (horizontal & vertical mounting)
    Wide range paper thickness: from 0.06 ~ 0.2 mm
    Brand name thermal head & auto cutter
    Ultra Highly printing speed Max 250 mm/s
    Label & receopt printing
    Support super large paper roll up to 200 mm diameter .

    The EP802-tm print module uses ROHM hot head, which is fast, low, reliable, good to print, and can cut a lot of paper. It is compact and easy to install and maintain.
    Multiple LEDs detection design greatly make it easy useing for customers .
    Specification of kiosk thermal printer

    Control boardEP802_3
    Thermal printer headBrand name: ROHM
    Auto cutterBrand name: OYANE



    Printing

    Printing methodThermal dot line
    Dots640dots
    Speed250mm/s (max)
    Printing width80mm (max)
    Paper width80/82.5 mm
    Paper thickness0.06~0.2 mm
    Paper loadingEasy loading ( horizontal 180°)
    Cutting methodFull/partial
    Print head lifeOver 100KM
    Printing formatinverse,underline,italic,bold
    Baud rate9600,19200,38400,115200
    FontASCII9*17,12*24
    Chinese24*24dots
    DetectionTPH temperatureTemperature sensor
    Mechanism open detectionMicro switch
    “anti-drag ticket detectionMechanical sensor
    Paper blocked detection
    Paper near end detectionPhoto-interrupter
    Black mark detection
    Paper cutting detection
    Paper presence detection
    ConditionsPower supplyDC24±10% V
    Load current

    1.5A continuous
    61mA Standby
    3.2 A Peak

    InterfacesRS232,USB
    PaperPaper typeThermal paper roll
    Recommended paper type

    KANZAN KF50
    KP460
    MITSUBISHIPG5075
    TL4000

    Environmentoperating temperature-10~60℃(no condensation)
    operating humidity20%~80%RH(40℃,85%RH)
    Storage temperature-20~70℃(no condensation)
    Storage humidity10%~90%RH(50℃,90%RH)
    DimensionPaper holder 45° upward ( 150mm paper roll)L*W*H=219.5*119.30*87.3mm
    Paper holder horizontal (150 mm paper roll)L*W*H=294.5*119.30*87.5mm
    Paper roll vertical (150 mm paper roll)L*W*H=154.2*119.30*258.6mm
    WeightApprox 1.45kg (without paper roll )






    Application of kiosk thermal printer
    Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer,bus ticket system,attendance kiosks and more .
